Skid Steer Attachments

Vibratory Roller

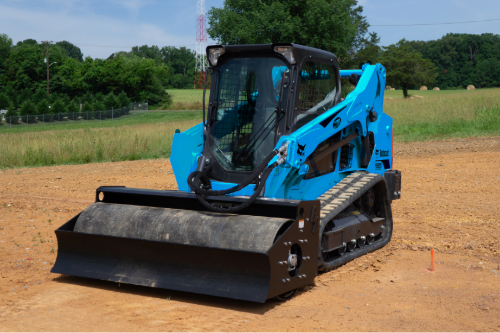

The Blue Diamond® Vibratory Rollers are available in 73″ and 84″ working widths. All models feature hydraulically powered exciter systems designed with oil-mist lubrication. All models minimize exciter shaft deflection, lower operating temperatures, and provide our customers with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame, minimizing transmission of vibration to the host machine. All models come with a universal quick-attach system. Smooth or pad foot drum options are available. Rental Recommended.

Find a Dealer
Blue Diamond Vibratory Roller Skid Steer Attachments 1 Blue Diamond Vibratory Roller Skid Steer Attachments Gallery 1 Blue Diamond Vibratory Roller Skid Steer Attachment Gallery 4 Blue Diamond Vibratory Roller Skid Steer Attachment Gallery 3 Blue Diamond Vibratory Roller Skid Steer Attachment Gallery 2

Product Details

Download Brochure
  • Industry leading bearing design
  • Integral knockdown blade

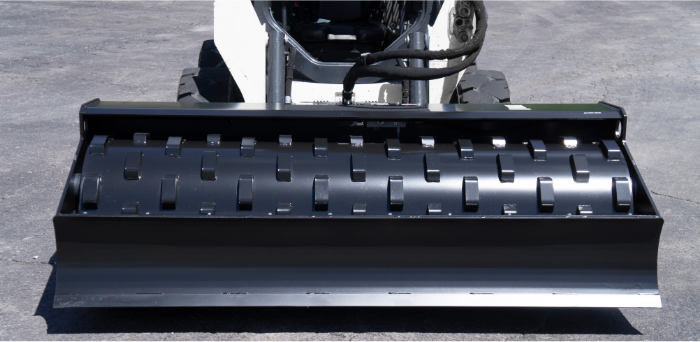

  • Smooth or pad foot models
  • Exciter systems are oil mist lubricate
  • Vibrating drums are effectively isolated from the roller frame
  • 12 heavy duty rubber shock mounts
  • Control valve block compensates for the correct flow of oil to prevent over speeding andover pressure of the exciter shaft
  • Universal adapter plate
  • Drive motor is inside a heavy duty steel frame
Part NumberModelDrum DiameterWeight
12401073” Vibratory Roller, Smooth24"2,050 lbs
12401573” Vibratory Roller, Pad Foot26 3/4"2,210 lbs
12403084” Vibratory Roller, Smooth24"2,300 lbs
12403584” Vibratory Roller, Pad Foot26 3/4"2,450 lbs
