SKID STEER ATTACHMENTS

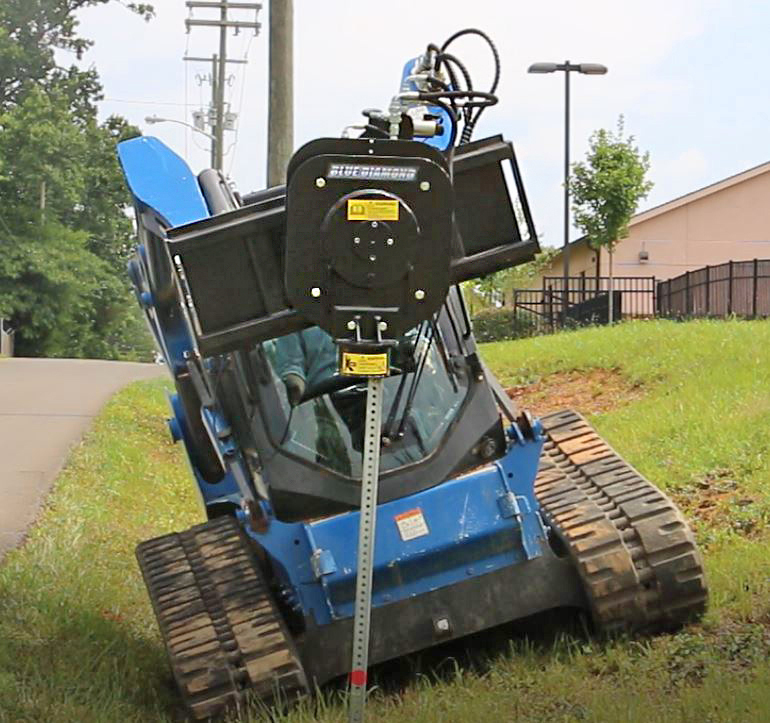

VIBRATORY POST DRIVER SERIES 2

Do not let the size of the Blue Diamond® Vibratory Series 2 Post Driver fool you–this unit packs more of a punch than most hammer-style drivers on the market. By using hydraulic orbital technology, this vibratory post driver uses your machine’s auxiliary flow in the most efficient way. Rental Recommended.

Find a Dealer
Blue Diamond Skid Steer Vibratory Post Driver Attachment 1

Product Details

Download Brochure
  • Easy to transport and store
  • Available with 4″, 6″, 9″, 10”, or 12″ adapter
  • Requires 7-26 GPM auxiliary flow
  • Weighs 540 lbs.
  • Optional tilt function
  • Interchangeable mount
  • Case drain required
Part Number Model Weight
Part Number100502 ModelPost Driver, Vibratory (Requires Mount) Weight264 lbs
Part Number100507 ModelPost Driver, Vibratory, W/Tilt (Requires Mount) Weight400 lbs
Part Number100510 ModelVibratory Tilt Option Weight123 lbs
Part Number100555 ModelSkid Steer Mount Weight125 lbs
Part Number100516 Model4” Round Post Adapter Weight15 lbs
Part Number100521 Model6” Round Post Adapter Weight17 lbs
Part Number100526 Model9” Round Post Adapter Weight19 lbs
Part Number100528 Model10” Round Post Adapter Weight37 lbs
Part Number100531 Model12” Round Post Adapter Weight50 lbs
Part Number100552 Model12” Square Flat Post Adapter Weight41 lbs
Part Number100553 Model12” Round Flat Post Adapter Weight
