Trencher

This extremely durable Blue Diamond® Skid Steer Trencher has many features that make it a more productive unit than our competitors. The extended auger carries the dirt further from the trench to prevent it from falling back in. The self-adjusting crumber brings any residual dirt back to the chain to be removed from the trench for an immaculate finish. Rental Recommended.

Find a Dealer
Blue Diamond Skid Steer Attachments Trencher Blue Diamond Skid Steer Attachments Trencher Gallery 2 Blue Diamond Skid Steer Attachments Trencher Gallery 1

Product Details

Download Brochure
  • Extended auger
  • Adjusting foot to keep trench depth consistent
  • Depths: up to 36″, 48″, or 60"
  • Cut widths: 4″, 6″, 8″, 10″, and 12″

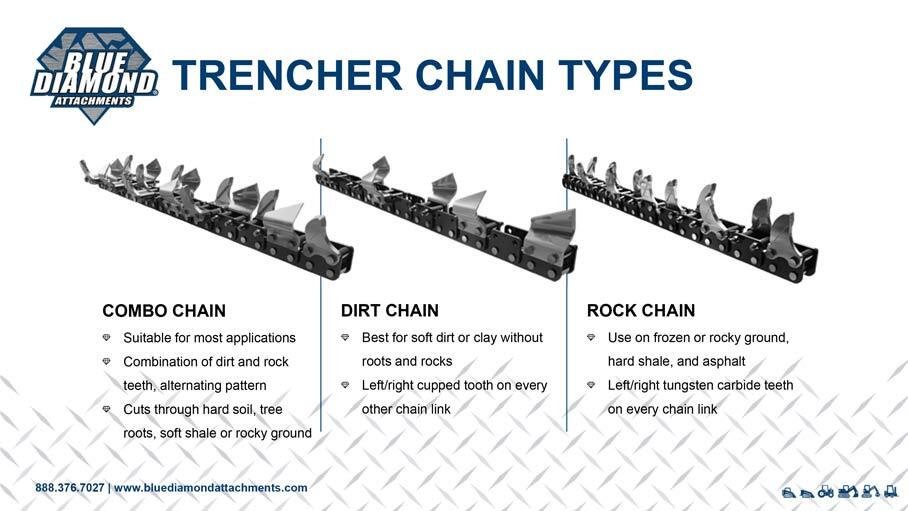

  • Chain types: dirt, rock, and combo
  • Spring-loaded, self-adjusting crumber for sweeping the trench clean
  • Manual adjusting side shift
  • Side auger to prevent dirt falling back into the trench
  • Eaton drive motor
Part Number Model Weight
Part Number131110 ModelTrencher, 36” Depth, 4” Dirt Chain Weight390 lbs
Part Number131125 ModelTrencher, 36” Depth, 4” Combo Chain Weight697 lbs
Part Number131140 ModelTrencher, 36” Depth, 4” Rock Chain Weight751 lbs
Part Number131115 ModelTrencher, 36” Depth, 6” Dirt Chain Weight575 lbs
Part Number131130 ModelTrencher, 36” Depth, 6” Combo Chain Weight780 lbs
Part Number131145 ModelTrencher, 36” Depth, 6” Rock Chain Weight751 lbs
Part Number131120 ModelTrencher, 36” Depth, 8” Dirt Chain Weight585 lbs
Part Number131135 ModelTrencher, 36” Depth, 8” Combo Chain Weight780 lbs
Part Number131150 ModelTrencher, 36” Depth, 8” Rock Chain Weight751 lbs
Part Number131210 ModelTrencher, 48” Depth, 6” Dirt Chain Weight1,120 lbs
Part Number131230 ModelTrencher, 48”Depth, 6” Combo Chain Weight1,075 lbs
Part Number131250 ModelTrencher, 48”Depth, 6” Rock Chain Weight1,075 lbs
Part Number131215 ModelTrencher, 48” Depth, 8” Dirt Chain Weight1,120 lbs
Part Number131235 ModelTrencher, 48”Depth, 8” Combo Chain Weight1,120 lbs
Part Number131255 ModelTrencher, 48”Depth, 8” Rock Chain Weight1,120 lbs
Part Number131220 ModelTrencher, 48”Depth, 10” Dirt Chain Weight1,120 lbs
Part Number131240 ModelTrencher, 48”Depth, 10” Combo Chain Weight1,120 lbs
Part Number131260 ModelTrencher, 48”Depth, 10” Rock Chain Weight1,120 lbs
Part Number131225 ModelTrencher, 48”Depth, 12” Dirt Chain Weight1,120 lbs
Part Number131245 ModelTrencher, 48”Depth, 12” Combo Chain Weight1,120 lbs
Part Number131265 ModelTrencher, 48”Depth, 12” Rock Chain Weight1,120 lbs
Part Number131300-HF ModelTrencher, High Flow, 60” Depth, 6” Combo Weight1,020 lbs
Part Number131305-HF ModelTrencher, High Flow, 60” Depth, 8” Combo Weight1,040 lbs
Part Number131310-HF ModelTrencher, High Flow, 60” Depth, 12” Combo Weight1,080 lbs
Part Number131005 ModelTrencher Mount Skid Steer 47 1/8" Wide Weight146 lbs
Part Number131006 ModelTrencher Mount, Wide Frame Side Shift 73 3/4" Wide Weight200 lbs
