tractor ATTACHMENTS

Pallet Forks - block & brick - heavy and Standard duty

The Blue Diamond® Heavy and Standard Duty Block & Brick Pallet Forks are available to fit a wide range of equipment, including skid steers, tractors, and telehandlers that have the skid steer quick attach. Block and Brick tines are available in 42" and 48" lengths and designed to help construction and landscaping crews move large amounts of masonry materials quickly and efficiently.

Find a Dealer

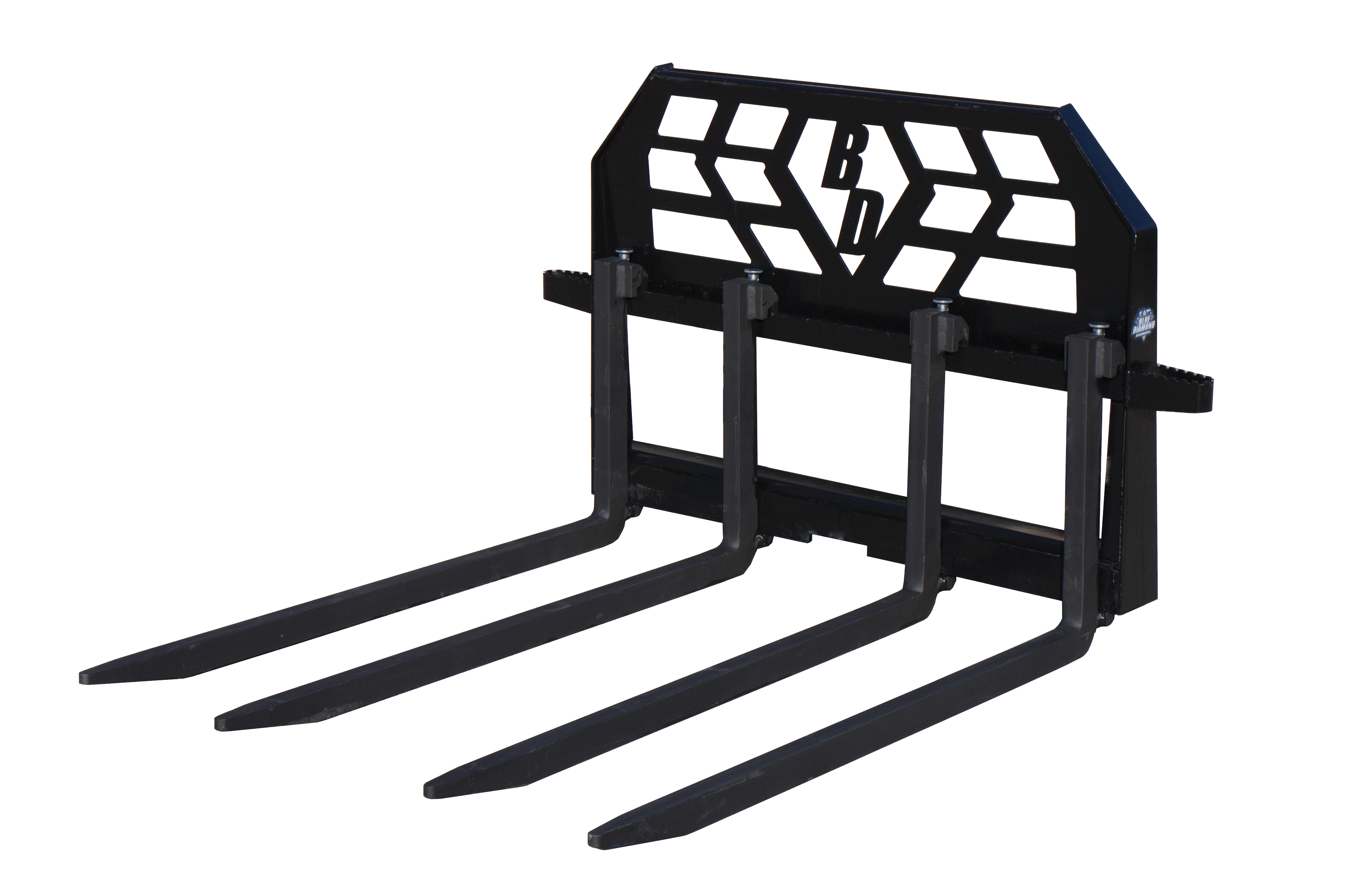

SS Pallet Fork frame block brick tines st

Product Details

Download Brochure

Tines fit any Class 2 fork frame
3,600 – 4,800 lbs capacity

Part Number	Model	Tine Size	Lift Capacity	Weight
Part Number314500	ModelPallet Fork, STD, W/Steps	Tine Size48” x 2” x 1 1/2”	Lift Capacity3,200 lbs	Weight313 lbs
Part Number314505	ModelPallet Fork, STD, W/Steps	Tine Size48” x 2” x 2”	Lift Capacity4,000 lbs	Weight445 lbs
Part Number314515	ModelPallet Fork, STD, W/Steps	Tine Size48” x 2” x 1 1/2”	Lift Capacity3,200 lbs	Weight363 lbs
Part Number314520	ModelPallet Fork, HD, W/Steps/D-Ring	Tine Size48” x 2” x 2”	Lift Capacity4,800 lbs	Weight410 lbs
Part Number314510	ModelPallet Fork, STD, W/Steps	Tine Size48” x 2” x 2”	Lift Capacity4,800 lbs	Weight471 lbs
Part Number114175	Model42" Block/Brick Tines STD Class 2	Tine Size42" x 2" x 1 1/2"	Lift Capacity3,200 lbs	Weight64 lbs
Part Number114178	Model48" Block/Brick Tines STD Class 2	Tine Size48" x 2" x 1 1/2"	Lift Capacity3,200 lbs	Weight69 lbs
Part Number114185	Model42" Block/Brick Tines STD Class 2	Tine Size42" x 2" x 2"	Lift Capacity4,800 lbs	Weight77 lbs
Part Number114180	Model48" Block/Brick Tines STD Class 2	Tine Size48" x 2" x 2"	Lift Capacity4,800 lbs	Weight84 lbs
Part NumberThe 114 series part numbers are tine only. The 314 series are assemblies with 4 tines included.	Model	Tine Size	Lift Capacity	Weight
