SKID STEER ATTACHMENTS

PALLET FORKS – WALK-THROUGH

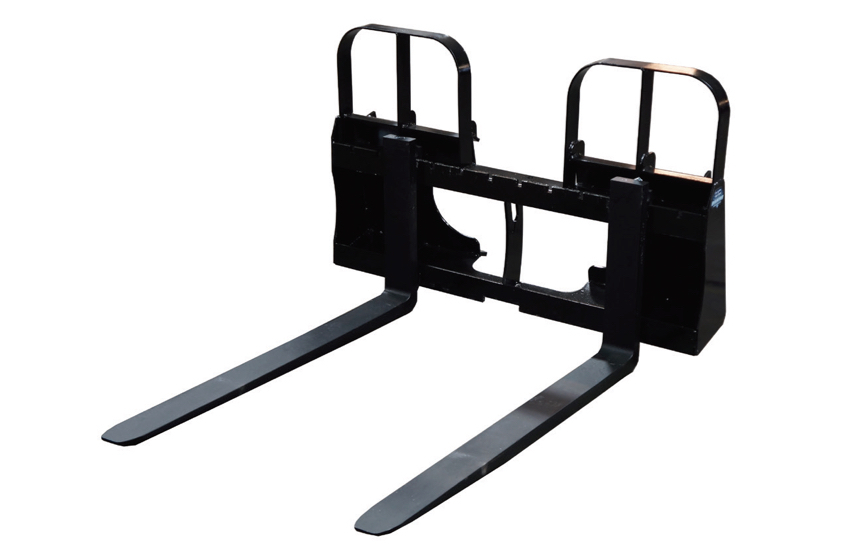

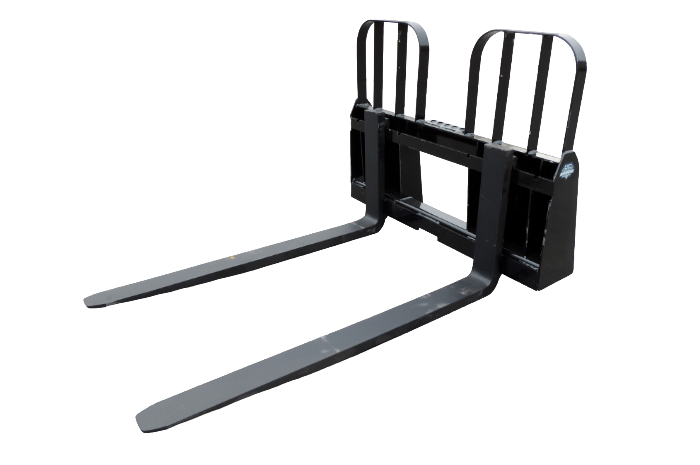

Blue Diamond® Heavy Duty Skid Steer Pallet Forks are rated for 4,200 to 5,000 lbs. lift. Using an easy-to-see-through frame, the heavy duty pallet forks give added lift capacity for larger skid steers. The reinforced brick guard and quick attach area make it extremely durable for heavy use. 48” tines are standard, and 60” and 72″ are available. The powder-coated frames feature a riveted on serial tag that has the lift capacities in pounds and kilograms to meet job site requirements for lifting attachments. Rental Recommended.

Find a Dealer
Blue Diamond Skid Steer Attachments Pallet Fork 5000 Capacity Walkthough Blue Diamond Skid Steer Attachments Pallet Fork 5000 Capacity Walkthough Gallery 1 Blue Diamond Skid Steer Attachments Pallet Fork 5000 Capacity Walkthough Gallery 2 Blue Diamond Skid Steer Attachments Pallet Fork 5000 Capacity Walkthough Gallery 3 Blue Diamond Skid Steer Attachments Pallet Fork 5000 Capacity Walkthough Gallery 4 Blue Diamond Skid Steer Attachments Pallet Fork 5000 Capacity Walkthough Gallery 5 Blue Diamond Skid Steer Attachments Pallet Fork 5000 Capacity Walkthough Gallery 6

Product Details

Download Brochure

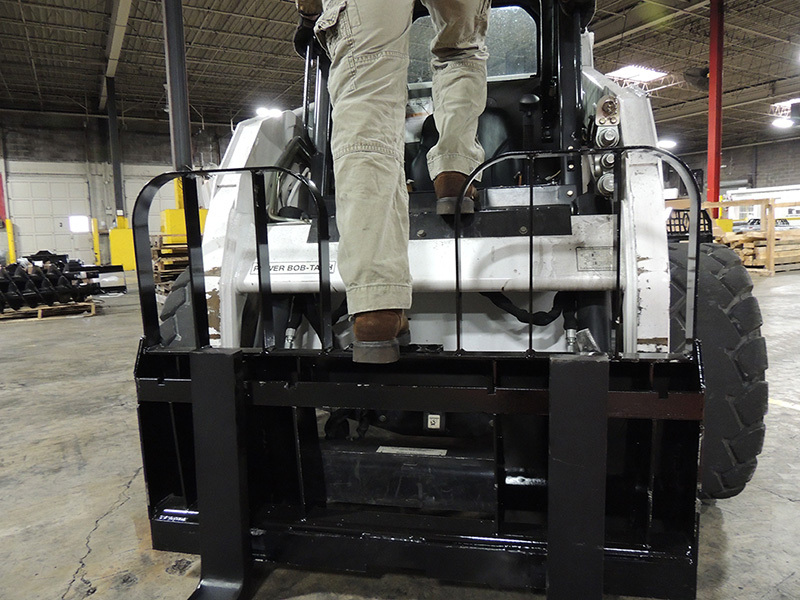

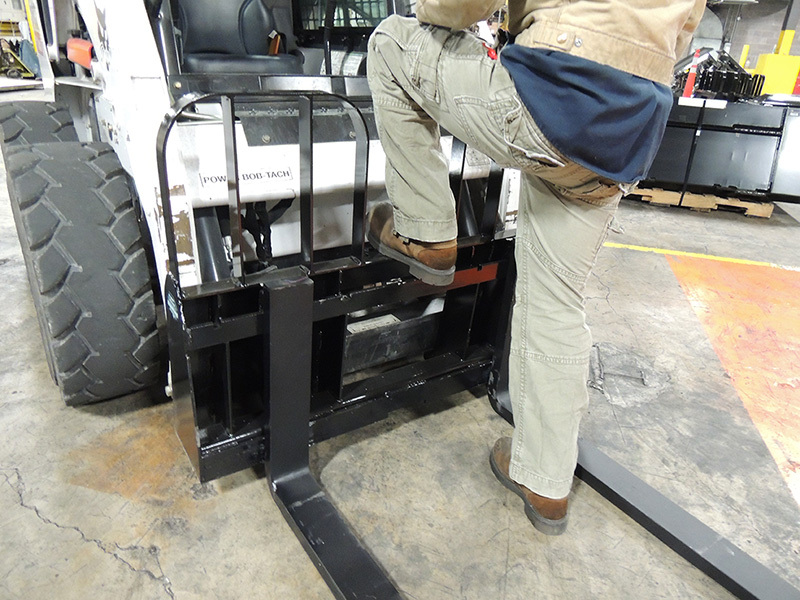

  • Walk-through frame allows easy entry to machine
  • Tread plate gives safe footing
  • 4,200 to 5,000 lb capacity
  • 48”, 60” and 72" tines available

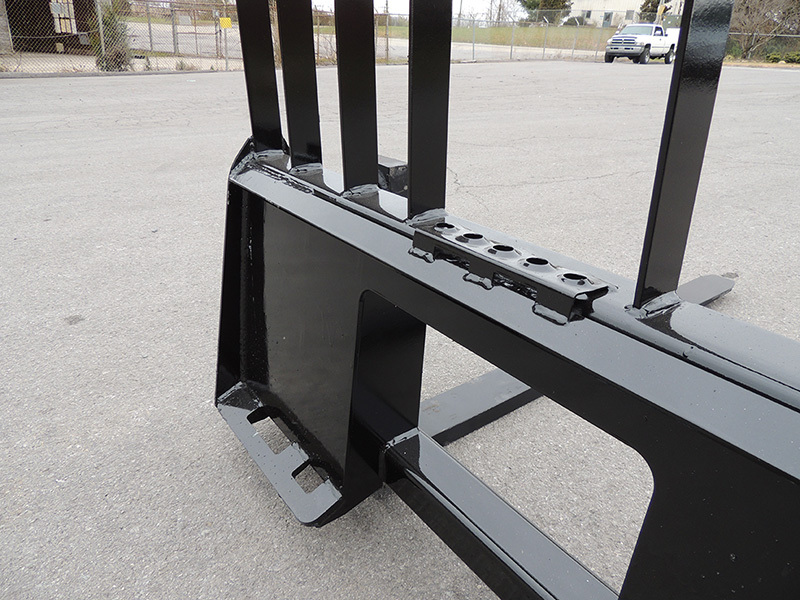

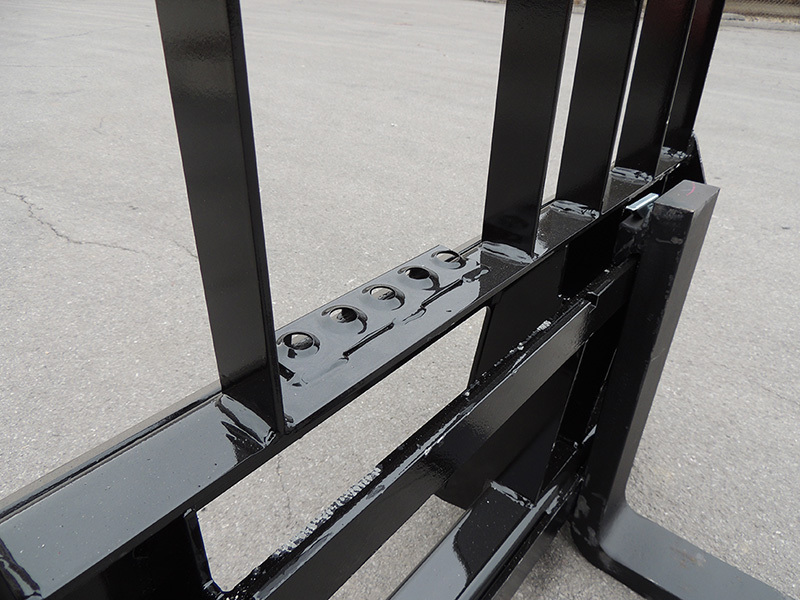

  • Forks lock in position
  • Excellent visibility
Part Number Model Lift Capacity Tine Size Weight
Part Number314009 ModelPallet Fork - Walk-through with 48" Tines Lift Capacity4,200 lbs. Tine Size1 1/2″ X 48″ Weight369 lbs.
Part Number314100 ModelPallet Fork - Walk-through with 60" Tines Lift Capacity4,200 lbs. Tine Size1 1/2″ X 60″ Weight411 lbs.
Part Number314008 ModelPallet Fork - Walk-through with 48" Tines Lift Capacity5,000 lbs. Tine Size1 1/2″ X 48″ Weight418 lbs.
Part Number314110 ModelPallet Fork - Walk-through with 60" Tines Lift Capacity5,000 lbs. Tine Size1 1/2″ X 60″ Weight422 lbs.
Part Number314115 ModelPallet Fork - Walk-through with 72" Tines Lift Capacity5,000 lbs Tine Size1/34" X 72" Weight450 lbs
