SKID STEER ATTACHMENTS

LAND GRADER

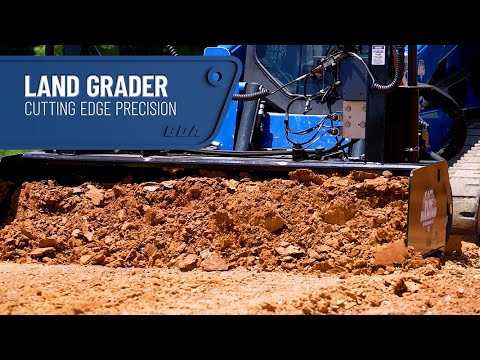

The Blue Diamond® Land Grader provides fast and accurate laser grading, saving you time and money. High capacity front and rear boxes combined with rear mounted wheels allow you to move and spread material efficiently. This attachment reduces labor and material costs, and improves the overall quality of site preparation! Pair with a bolt-on automatic grade control system and sit back and let the grader do the work!
Find a Dealer
Land Grader Full View Right Angle Web Land Grader Full View Straight Web SS Land Grader ac3 web SS Land Grader ac4 web SS Land Grader ac5 web SS Land Grader ac6 web SS Land Grader ac7 web

Product Details

Download Brochure
  • Rear mounted wheels behind the blade improve maneuverability and stability on graded surfaces
  • Front and rear cutting edges allow you to push or pull material for precise placement while traveling in either direction
  • Bolt-on front and rear cutting edges are ½” thick hardened steel and replaceable. Side edges are adjustable and replaceable
  • Blade attachment can self-articulate up to 8 inches independently of the skid steer on either side
  • Ball joints and parallel links allow up/down and side to side movement independent from the machine creating a precision graded surface
  • Built tough in the USA with Certified American Steel and protected with a long-lasting powder coated finish
  • Optional laser receiver kit (Compatible with most laser units- 600 RPM or more)
Part NumberModelBox HeightWeightFront Box CapacityRear Box CapacityMin HP RequiredLaser Receiver Kit
12351584"19″469 lbs.17 cu. ft.10 cu. ft.55Optional
