TRACTOR ATTACHMENTS
HAY SPEAR – SINGLE

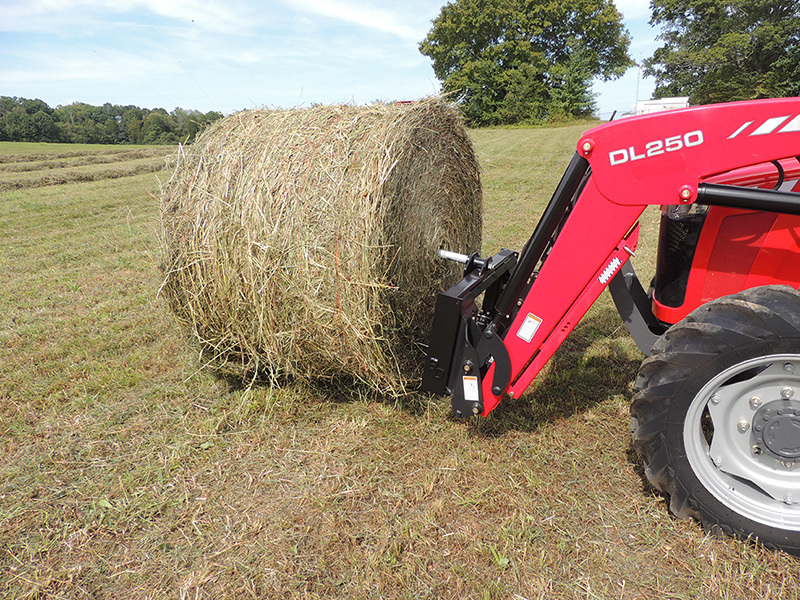

Blue Diamond® offers a high quality yet compact hay spear for tractors. It is available in two styles, a single spear with stabilizers for round bales, or a double bottom style for large square bales, which can also be used as a pallet fork. The high quality German-made spear tines are rated for 3500 lbs. each, and the lower stabilizers are replaceable. These strong frames are powder coated, and a bolt-on back rack is available. All Blue Diamond® Hay Spears carry a one-year warranty. Many mount options are available.
Product Details
Download Brochure- Single, double, or quad high quality spears
- Bolt-in stabilizers
- Optional bolt-on rack
- 3,500 lb. spear capacity
- Euro-Ag/Global and John Deere 400/500, 600/700 mounts available
Part Number | Model | Weight | Main Spears | Stabilizer | Capacity |
---|---|---|---|---|---|
Part Number311006 | ModelSingle Spear | Weight165 lbs | Main Spears1 3/4” x 48” | Stabilizer2” x 1” | Capacity3,500 lbs |
Part Number311008 | ModelSingle Heavy Duty | Weight160 lbs | Main Spears1 3/4” x 48” | Stabilizer2” x 1.5” | Capacity3,500 lbs |
Part Number311010 | ModelDouble Bottom | Weight180 lbs | Main Spears1 3/4” x 48” | StabilizerNONE | Capacity3,500 lbs |
Part Number311011 | ModelDouble Bottom with Rack | Weight218 lbs | Main Spears1 3/4” x 48” | StabilizerNONE | Capacity3,500 lbs |
Part Number311045 | ModelQuad Bottom | Weight280 lbs | Main Spears1 3/4” x 48” | StabilizerNONE | Capacity3,500 lbs |
