TRACTOR ATTACHMENTS

HAY SPEAR – DOUBLE

Blue Diamond® offers a high quality yet compact hay spear. It is available in two styles: a single spear with stabilizers for round bales and a double bottom style for large square bales, which can also be used as a pallet fork. The high quality German-made spear tines are rated for 3500 lbs. each, and the lower stabilizers are replaceable. These strong frames are powder coated, and a bolt-on back rack is available. All Blue Diamond® hay spears carry a 1-year warranty.

Find a Dealer

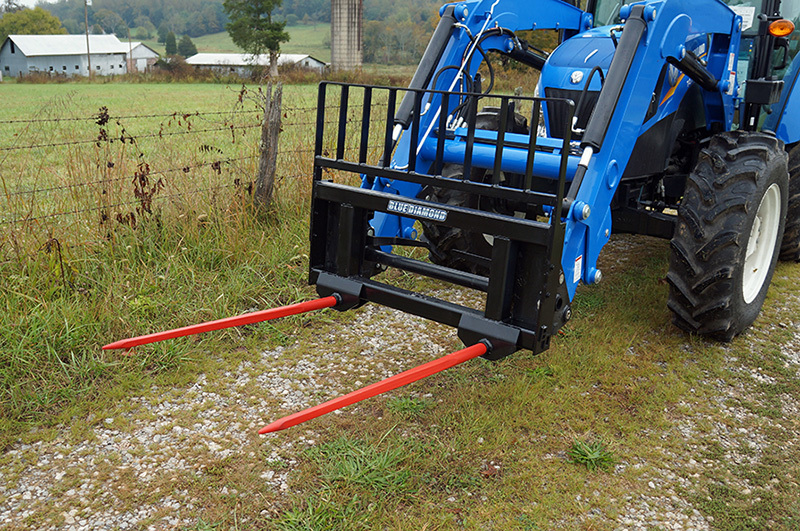

Blue Diamond Hay Spear Double Tractor Attachments

Product Details

Download Brochure

Dual full length tines
Can be used as pallet forks
Add-on back rack available
Single, double, or quad Spears
Optional bolt-on rack
3,500 lb. spear capacity
Euro-Ag/Global and John Deere 400/500, 600/700 mounts available
Powder coat paint

Part Number	Model	Weight	Main Spears	Stabilizer	Capacity
311006	Single Spear	165 lbs	1 3/4” x 48”	2” x 1”	3,500 lbs
311008	Single Heavy Duty	160 lbs	1 3/4” x 48”	2” x 1.5”	3,500 lbs
311010	Double Bottom	180 lbs	1 3/4” x 48”	None	3,500 lbs
311011	Double Bottom with Rack	218 lbs	1 3/4” x 48”	None	3,500 lbs
311045	Quad Bottom	280 lbs	1 3/4” x 48”	None	3,500 lbs
