SKID STEER ATTACHMENTS

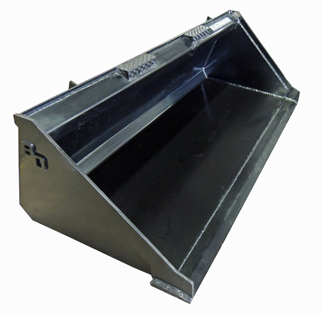

BUCKET – GENERAL PURPOSE
The Blue Diamond® General Purpose Buckets for skid steers are available in a variety of configurations. We offer weld-on cutting edge, bolt-on cutting edge, teeth, toothbar, or a long-bottom version. These well-engineered, low-profile buckets offer a powerful breakout force and great visibility. Buckets up to 72″ wide use 3/16″ material back and bottom. The 78″ and larger sizes use 1/4″ material. All standard buckets are 20″ tall and use a 3/4″ by 6″ cutting edge. The standard bottom is 30″ front to back, and the long-bottom bucket is 36″.
*Not recommended for track machines.
Product Details
Download Brochure- Low profile: 20″ high, 29″ deep
- Low profile, long bottom: 20″ high, 39″ deep
- 60″ – 72″ uses 3/16″ wrap
- 78″ – 84″ uses 1/4″ wrap
- 3/4″ cutting edge
Part Number | Model | Struck Capacity | Weight |
---|---|---|---|
Part Number108090 | Model60" Low Profile-Smooth | Struck Capacity10.8 cu ft | Weight334 lbs |
Part Number108095 | Model60" Low Profile-Tooth | Struck Capacity10.8 cu ft | Weight384 lbs |
Part Number108100 | Model66" Low Profile-Smooth | Struck Capacity12.2 cu ft | Weight354 lbs |
Part Number108105 | Model66" Low Profile-Tooth | Struck Capacity12.2 cu ft | Weight409 lbs |
Part Number108110 | Model72" Low Profile-Smooth | Struck Capacity13.2 cu ft | Weight378 lbs |
Part Number108115 | Model72" Low Profile-Tooth | Struck Capacity13.2 cu ft | Weight437 lbs |
Part Number108120 | Model78" Low Profile-Smooth | Struck Capacity14.3 cu ft | Weight408 lbs |
Part Number108125 | Model78" Low Profile-Tooth | Struck Capacity14.3 cu ft | Weight460 lbs |
Part Number108130 | Model84" Low Profile-Smooth | Struck Capacity15.7 cu ft | Weight436 lbs |
Part Number108135 | Model84" Low Profile-Tooth | Struck Capacity15.7 cu ft | Weight515 lbs |
Part Number108140 | Model60" Low Profile-Long Bottom-Smooth | Struck Capacity15.7 cu ft | Weight385 lbs |
Part Number108145 | Model60" Low Profile-Long Bottom-Tooth | Struck Capacity15.7 cu ft | Weight434 lbs |
Part Number108150 | Model66" Low Profile-Long Bottom-Smooth | Struck Capacity17.3 cu ft | Weight426 lbs |
Part Number108155 | Model66" Low Profile-Long Bottom-Tooth | Struck Capacity17.3 cu ft | Weight472 lbs |
Part Number108160 | Model72" Low Profile-Long Bottom-Smooth | Struck Capacity18.6 cu ft | Weight446 lbs |
Part Number108165 | Model72" Low Profile-Long Bottom-Tooth | Struck Capacity18.6 cu ft | Weight505 lbs |
Part Number108170 | Model78" Low Profile-Long Bottom-Smooth | Struck Capacity20 cu ft | Weight441 lbs |
Part Number108180 | Model84" Low Profile-Long Bottom-Tooth | Struck Capacity22 cu ft | Weight505 lbs |
