TRACTOR ATTACHMENTS
Box Blade Scraper

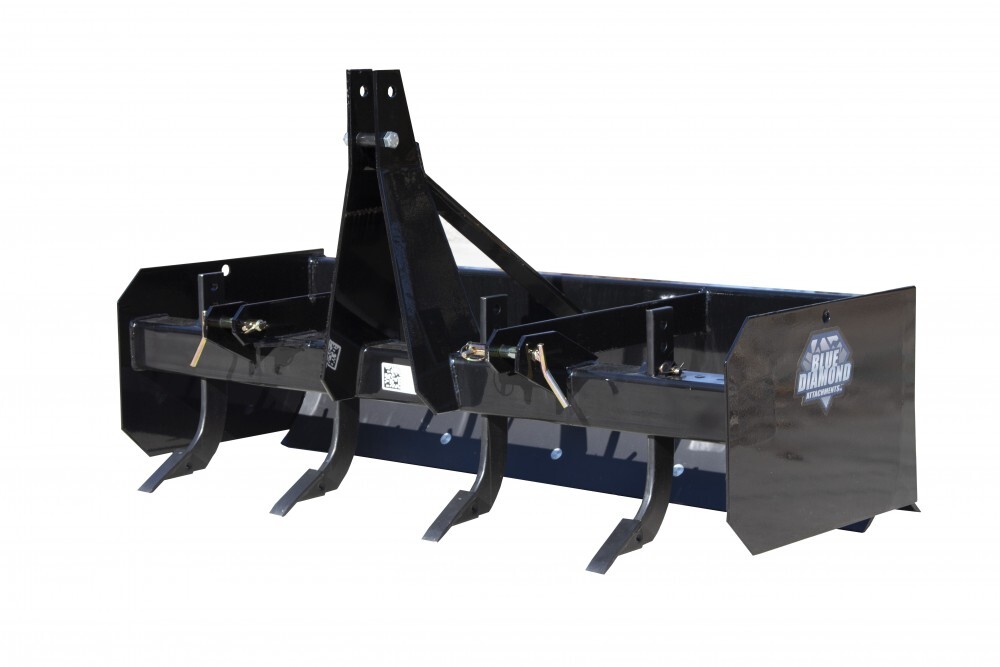

The Standard Duty Blue Diamond® Box Blade Scraper is designed for working topsoil, gravel, mulch, or manure. Ideal for use on the farm, at building sites, or outdoor arenas. The Standard Duty scrapers work with 15 hp to 45 hp tractors and are available in 2 widths: 48″ and 60″. The 48″ unit features 3 adjustable ripper shanks and the 60″ model features 4. The Standard Duty scrapers are compatible with the Category 1 quick hitch.
For tougher jobs, the Heavy Duty Blue Diamond® Box Blade Scraper will stand up to the tasks required to maintain your farm, building site, or landscaping projects. Featuring adjustable heavy-duty ripper shanks, these units make quick work of ripping up dirt, grading and leveling land, or spreading soil. Heavy Duty models work with 30 hp to 70 hp tractors and are available in 3 working widths from 72″ to 96″. The Heavy Duty scrapers are compatible with both Category 1 and Category 2 quick hitches.
Product Details
Download Brochure- Adjustable ripper shanks
- Heavy duty construction
- 2-year warranty
Part Number | Model | Horsepower | Width | Moldboard Height | Overall Depth | Weight | Number of Shanks | A-Frame Material | Cutting Edges | Quick-Hitch Compatible |
---|---|---|---|---|---|---|---|---|---|---|
Part Number426010 | Model48" Standard Duty | Horsepower15-45 | Width48" | Moldboard Height17" | Overall Depth22" | Weight290 lbs | Number of Shanks3 | A-Frame Material3/8" | Cutting Edges6" | Quick-Hitch CompatibleYes |
Part Number426015 | Model60" Standard Duty | Horsepower15-45 | Width60" | Moldboard Height17" | Overall Depth22" | Weight323 lbs | Number of Shanks4 | A-Frame Material3/8" | Cutting Edges6" | Quick-Hitch CompatibleYes |
Part Number426110 | Model72" Heavy Duty | Horsepower30-70 | Width72" | Moldboard Height17" | Overall Depth22" | Weight530 lbs | Number of Shanks5 | A-Frame Material1/2" | Cutting Edges6" | Quick-Hitch CompatibleYes |
Part Number426115 | Model84" Heavy Duty | Horsepower30-70 | Width84" | Moldboard Height17" | Overall Depth22" | Weight586 lbs | Number of Shanks6 | A-Frame Material1/2" | Cutting Edges6" | Quick-Hitch CompatibleYes |
Part Number426120 | Model96" Heavy Duty | Horsepower30-70 | Width96" | Moldboard Height17" | Overall Depth22" | Weight640 lbs | Number of Shanks6 | A-Frame Material1/2" | Cutting Edges6" | Quick-Hitch CompatibleYes |
Part NumberThe Heavy Duty models require some assembly. | Model | Horsepower | Width | Moldboard Height | Overall Depth | Weight | Number of Shanks | A-Frame Material | Cutting Edges | Quick-Hitch Compatible |
