Skid Steer ATTACHMENTS

Backhoe Attachment

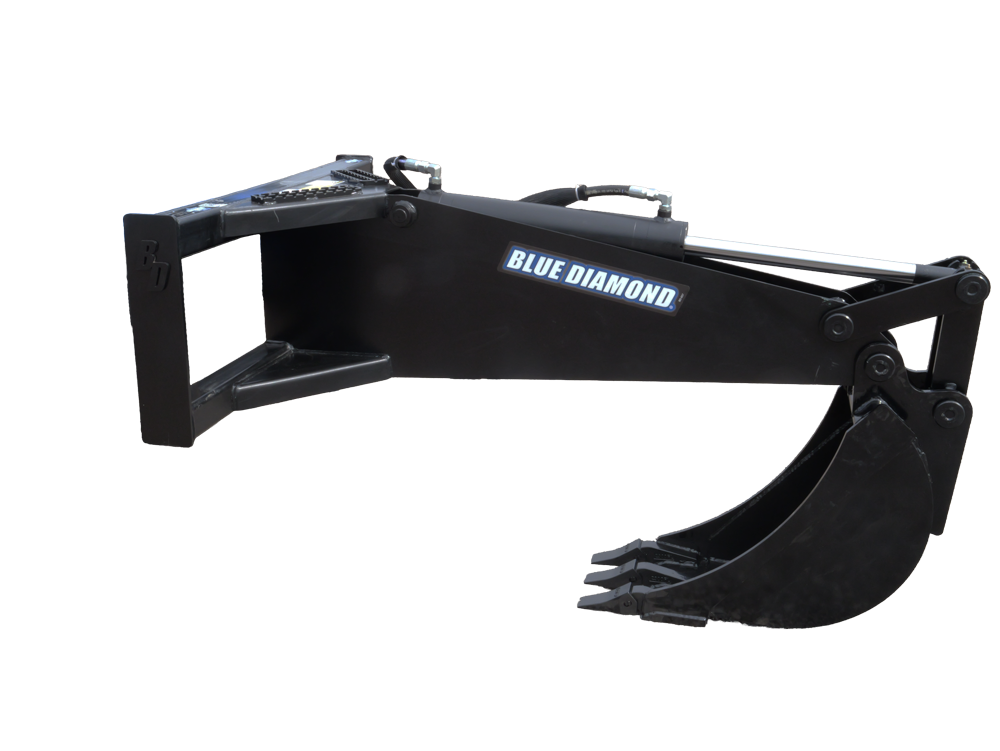

The Blue Diamond® Backhoe attachment is a quick and easy way to dig trenches using a skid steer. This powerful unit uses the biggest cylinder in the industry and has the largest bucket capacity. The linkage geometry gives exceptional bucket rotation and breakout force. When the bucket is fully extended, the overall length is 8' and can dig a 6' depth. This powerful attachment will outperform other backhoes both in production and strength. The side pin cast teeth are replaceable, and bucket options range from 8″ to 30″ widths.

Find a Dealer
Blue Diamond Skid Steer Attachment Backhoe Blue Diamond Skid Steer Attachment Backhoe Gallery 2 Blue Diamond Skid Steer Attachment Backhoe Gallery 1 Blue Diamond Skid Steer Attachment Backhoe Gallery 4 Blue Diamond Skid Steer Attachment Backhoe Gallery 3 Blue Diamond Skid Steer Attachment Backhoe Gallery 5 Blue Diamond Skid Steer Attachment Backhoe Gallery 6 Blue Diamond Skid Steer Attachment Backhoe Gallery 7

Product Details

Download Brochure
  • Maximum digging depth is 6'

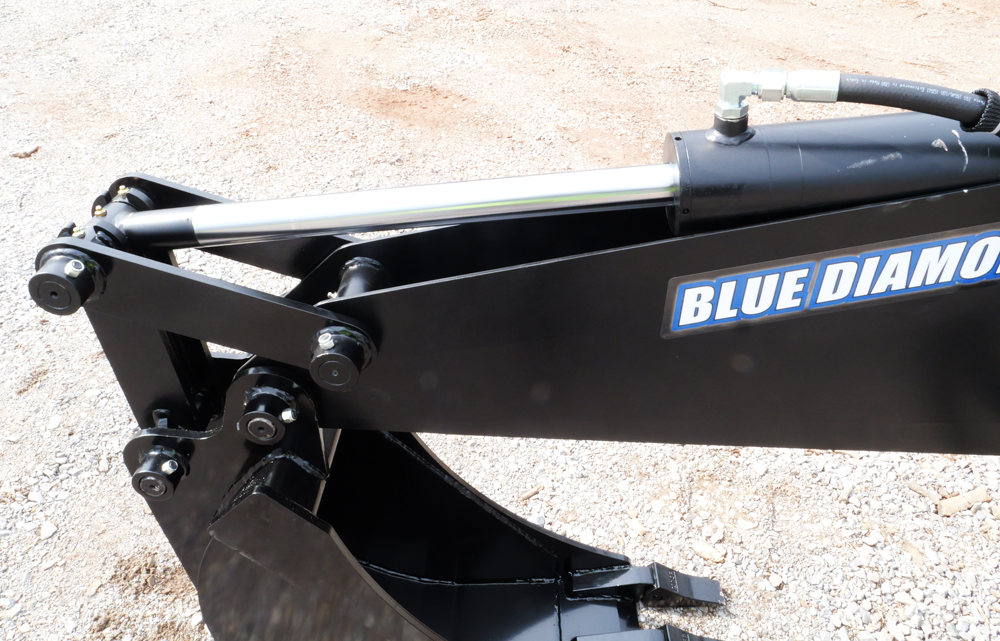

  • 3 1/2" hydraulic cylinder bore and 20" stroke
  • Pivot linkage between cylinder and bucket increases rotation and breakout

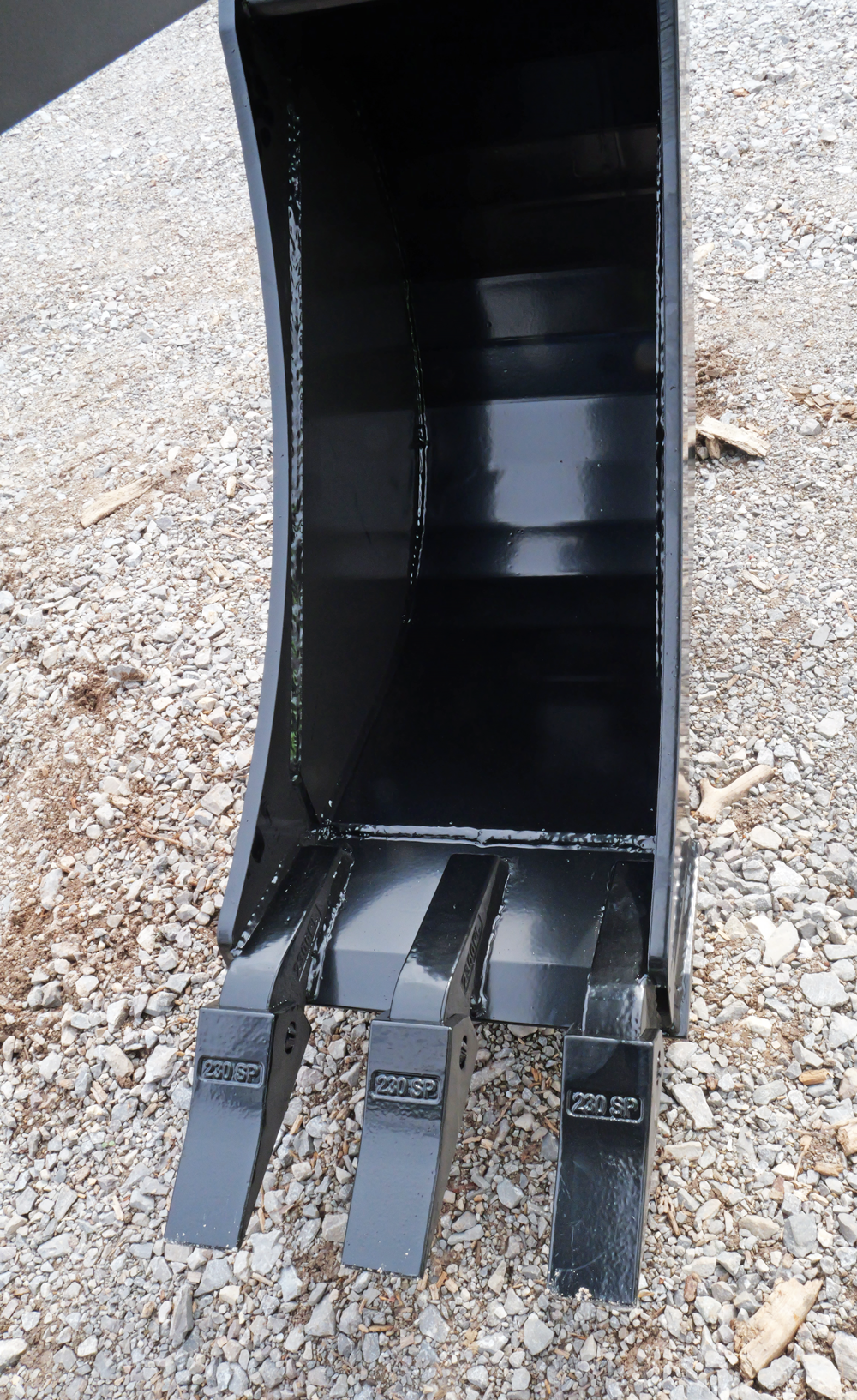

  • Buckets available in 8", 9", 12", 18", 24", and 30" widths

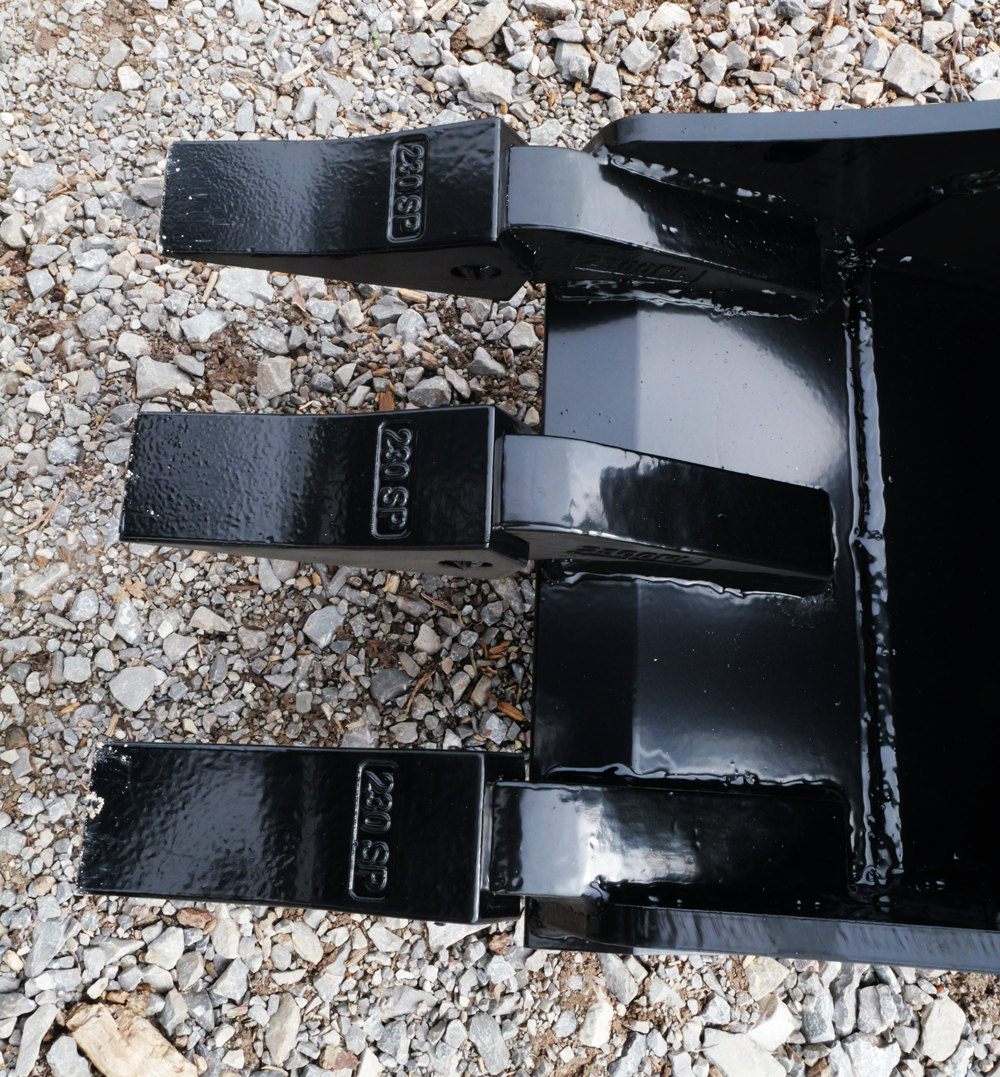

  • Replaceable side pin cast teeth

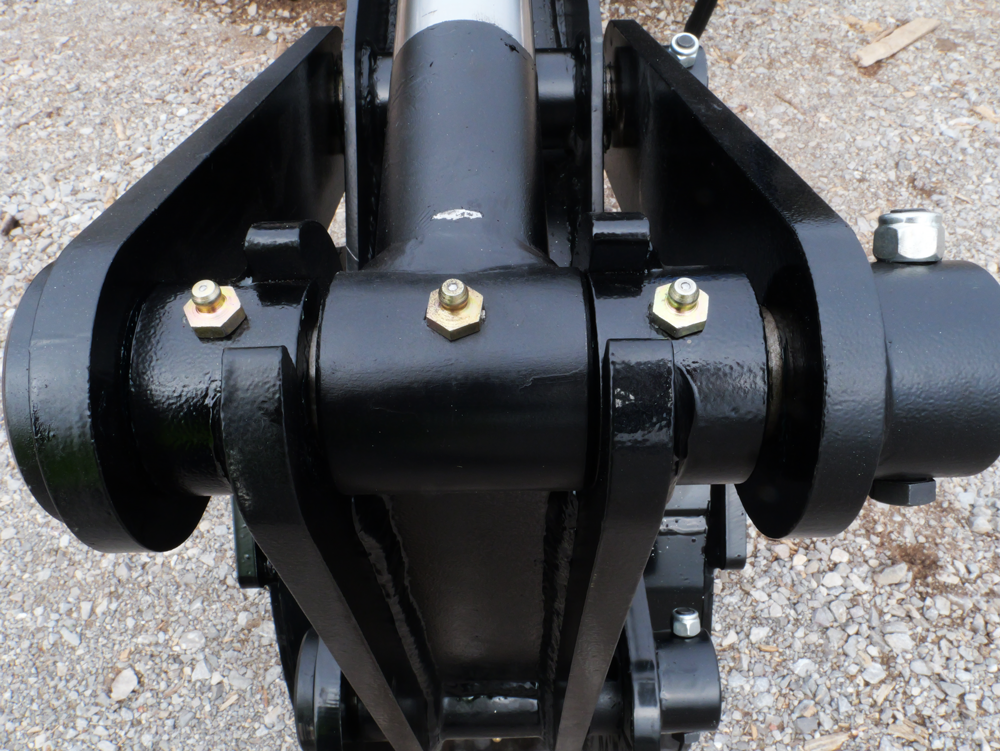

  • Grease fittings on all pivot points
  • Quick off and on machine
  • Easy to operate and requires no electrical hookups
  • Hose and flat faced couplers included
Part NumberModelWeight
130005Backhoe, Hyd (No Bucket)388 lbs
1300098" Backhoe Bucket103 lbs
1300109" Backhoe Bucket103 lbs
13001512" Backhoe Bucket139 lbs
13002018" Backhoe Bucket169 lbs
13002524" Backhoe Bucket202 lbs
13002730" Backhoe Bucket202 lbs
